23 11 311 Replacing the shifting unit (GS6-58/59 BG/DG)

Necessary preliminary work:

• Remove INTAKE SILENCER HOUSING
• Put the gear into neutral

Removal:

Lever the insert fixtures (3) of the selector lever cables from the ball joints with the open-end spanner SW13.

Fig 1: Inserting Fixtures Of Selector Lever Cables From Ball Joints

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Fig 2: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release gearshift dome by tugging on the shift weight (1); pull gearshift dome approx. 30 mm out of the transmission housing.

Fig 3: Releasing Gearshift Dome By Tugging On Shift Weight

Courtesy of BMW OF NORTH AMERICA, INC.

Turn gearshift dome unit through 90 ° counter clockwise.

Fig 4: Turning Gearshift Dome Unit Counter Clockwise

Courtesy of BMW OF NORTH AMERICA, INC.

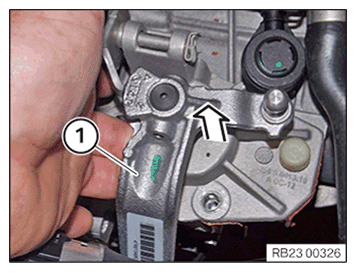

Pull out gearshift dome unit (1) upwards.

Fig 5: Pulling Out Gearshift Dome Unit Upwards

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fig 6: Locating Gasket Sealing Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surface (1) with a lint-free cloth to remove gasket residues.

Apply surface sealant to sealing surface (1).

Surface sealing compound: Loctite 5203, BMW part number 83 19 0 395 783

Fig 7: Sealant Applying Area To Sealing Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate gearshift dome and insert into transmission to approx. 30 mm above the end position.

Then rotate gearshift dome through 90 ° clockwise to the end position and insert in the housing up to limit position.

Fig 8: Rotating Gearshift Dome

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Installation note:

Replace screws.

Tightening torque 23 41 1AZ

Fig 9: Locating Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Attach selector lever cables (3) at ball joints.

Fig 10: Limit Position/Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
