23 11 212 Replacing sealing cap (GS6-58/59 BG/DG)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove FRONT LEFT WHEEL

Removal:

IMPORTANT:

Risk of damage:

Damage to the transmission housing will result in oil leaks!

Knock in sealing cap (1) on the transmission with a slotted screwdriver and lever out.

Fig 1: Removing Sealing Cap On Transmission With Slotted Screwdriver

G11720531

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Manually insert sealing cap (1) into transmission opening.

Fig 2: Locating Sealing Cap Into Transmission Opening

G11720532

Courtesy of BMW OF NORTH AMERICA, INC.

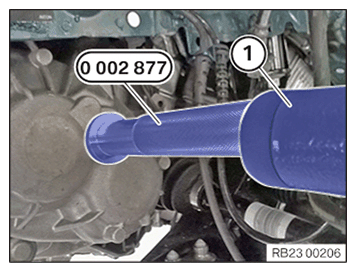

Drive sealing cap (1) flush to the limit position with special tool 0 002 877 .

Fig 3: Driving Sealing Cap With Special Tool (0 002 877)

G11720533

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Check transmission OIL LEVEL .

IMPORTANT:

The vehicle must be parked on a level surface to check the transmission oil level.

Use only the approved TRANSMISSION OIL .

Failure to comply with this instruction will result in serious damage to the transmission.
