23 14 550 Removing/replacing gear sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT ASSEMBLY UNDERSIDE PROTECTION .

Removal:

Disconnect plug connection (2) of gear sensor.

Release screws (1) and remove gear sensor.

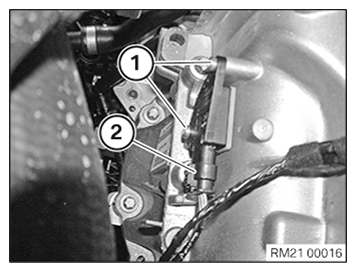

Fig 1: Locating Plug Connection Of Gear Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install gear sensor and tighten screws (1).

Tightening torque 23 14 1AZ .

Engage plug connection (2) of gear sensor.

Fig 2: Locating Plug Connection Of Gear Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install FRONT ASSEMBLY UNDERSIDE PROTECTION .

IMPORTANT:

After installing the gear sensor, it is necessary to teach in the position of the gear sensor again.

Perform "Teach in gear sensor" service function using BMW diagnosis system!
