24 35 566 Replacing speed sensor (input) (AISIN F21FT)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL . Make a note of drained ATF quantity.

Use only the approved TRANSMISSION OIL .

Otherwise the automatic transmission may incur extensive damage!

Do not drain oil before the transmission has cooled down.

Necessary preliminary work:

Remove HYDRAULIC SHIFT UNIT

Removal:

Release screw (1).

Remove sensor (2).

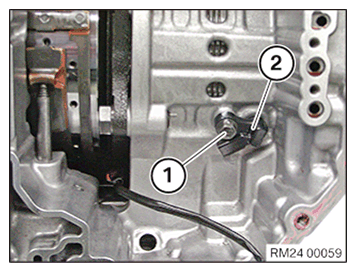

Fig 1: Sensor And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install sensor (2) and fasten with screw (1).

IMPORTANT: Coat sealing ring with clean transmission oil.

Fig 2: Sensor And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque: 24 35 1AZ .
