24 35 511 Replacing wiring harness in automatic transmission (AISIN F21FT)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: After completion of work, check TRANSMISSION OIL LEVEL . Make a note of drained ATF quantity.

Use only the approved TRANSMISSION OIL .

Otherwise the automatic transmission may incur extensive damage!

Do not drain oil before the transmission has cooled down.

Necessary preliminary tasks:

Remove HYDRAULIC SHIFT UNIT

Removal:

Disconnect connector (1).

Fig 1: Locating Connector

G11646085

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock slide (1).

Fig 2: Locating Slide

G11646086

Courtesy of BMW OF NORTH AMERICA, INC.

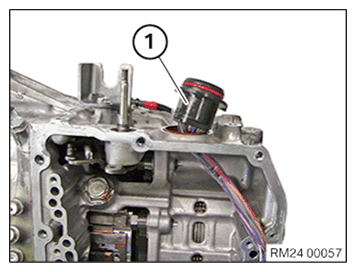

Pull wiring harness (1) out of transmission housing.

Fig 3: Wiring Harness

G11646087

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

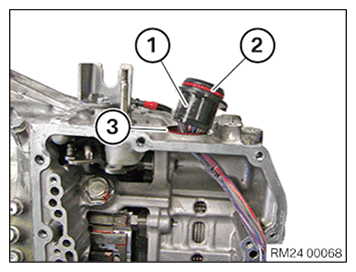

Parts: Replace gaskets (2) and (3).

Insert wiring harness (1) into transmission.

Fig 4: Wiring Harness And Gaskets

G11646088

Courtesy of BMW OF NORTH AMERICA, INC.

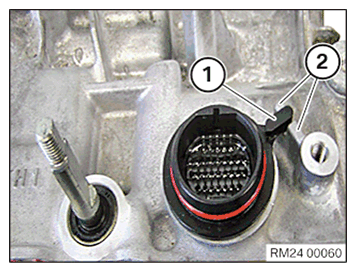

IMPORTANT: Connector of lug (1) must be fitted in transmission recess (2).

Fig 5: Lug In Recess

G11646089

Courtesy of BMW OF NORTH AMERICA, INC.

Parts: Replace slide (1).

Lock slide (1).

Fig 6: Locating Slide

G11646086

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock connector (1).

Fig 7: Locating Connector

G11646085
