24 11 041 Removing and installing/replacing transmission oil cooler (AISIN F21FT)

Special tools required:

• 16 1 070

Attention  !

After completion of work, check GEARBOX OIL LEVEL .

Use only the approved TRANSMISSION OIL .

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Attention  !

No dirt is allowed to enter the oil circuit.

Failure to comply with this requirement will result in serious damage to the automatic transmission!

Necessary preliminary tasks:

• Remove INTAKE SILENCER HOUSING .
• Remove front UNDERBODY PROTECTION .
• Drain off TRANSMISSION OIL .

Removal:

Unscrew the sealing cap (1) of the coolant expansion tank.

Fig 1: Sealing Cap Of Coolant Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Attention  !

Follow notes for CARRYING OUT REPAIRS ON THE COOLING SYSTEM .

Unfasten hose clamps.

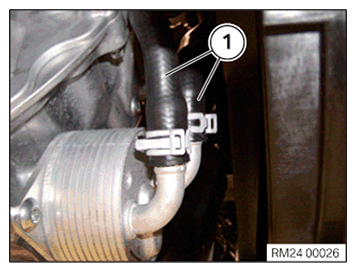

Disconnect the coolant hoses (1) from the transmission oil cooler.

Catch the emerging coolant.

Fig 2: Transmission Oil Cooler Coolant Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove transmission oil cooler (2).

Fig 3: Transmission Oil Cooler Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Close openings on the transmission oil cooler with special tool 16 1 070 .

Fig 4: Closing Openings On Transmission Oil Cooler Using Special Tool 16 1 070

Courtesy of BMW OF NORTH AMERICA, INC.

Close openings on the transmission with special tool 16 1 070 .

Fig 5: Closing Openings On Transmission Using Special Tool 16 1 070

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove the special tool 16 1 070 from the openings in the transmission.

Fig 6: Closing Openings On Transmission Using Special Tool 16 1 070

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Closing Openings On Transmission Using Special Tool 16 1 070

Courtesy of BMW OF NORTH AMERICA, INC.

Remove the special tool 16 1 070 from the openings on the gearbox oil cooler.

Parts:  Replace sealing rings (1).

Clean contact surfaces.

Coat sealing rings (1) with clean transmission oil.

Fig 8: Sealing Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Install the transmission oil cooler (2).

Tighten screw (1).

Tightening torque 22 11 4AZ .

Fig 9: Transmission Oil Cooler Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Slide the coolant hoses (1) onto the transmission oil cooler.

Secure hose clamps.

Fig 10: Transmission Oil Cooler Coolant Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Top up COOLANT .
• Add TRANSMISSION FLUID .
• Carry out vehicle test.
