24 21 231 Replacing right radial shaft seal on differential (AISIN F21FT)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove RIGHT OUTPUT SHAFT .
Remove INTAKE SILENCER HOUSING .

Removal:

Drive a hole into radial shaft seal using a center punch.

Fig 1: Driving Hole Into Radial Shaft Seal Using Center Punch

G11646067

Courtesy of BMW OF NORTH AMERICA, INC.

Attention !

Do not use a drill as shavings may result in transmission malfunction.

Screw special tool 23 0 490 into radial shaft seal.

Drive out radial shaft seal (1) with impact weight (2).

Installation:

Fig 2: Driving Out Radial Shaft Seal With Impact Weight

G11646068

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Coat sealing lips of new radial shaft seal with clean transmission oil.

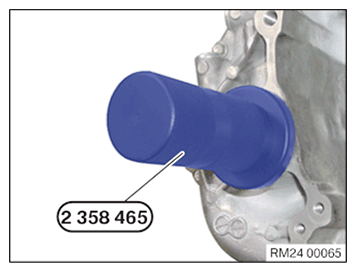

Drive shaft seal firmly home with special tool 2 358 465 .

Required follow-up work:

Check TRANSMISSION OIL LEVEL .
