Manual emergency release of transmission lock

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

In the event of a power supply interruption, e.g. flat battery or electrical fault, the parking lock must be manually released, otherwise the wheels will be locked and the vehicle cannot be shifted.

IMPORTANT: Secure vehicle against rolling, e.g. with chocks.
Press the brake pedal when manually releasing the transmission lock, otherwise there is a risk that the vehicle will roll when the transmission lock is manually released.

Removal:

Detach retaining ring (1) upwards.

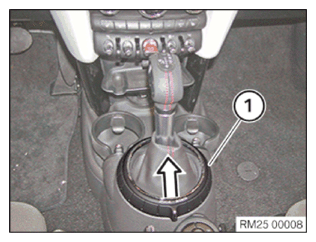

Fig 1: Detaching Retaining Ring Upwards
G11774504Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector in vehicles with Driving Mode (1).

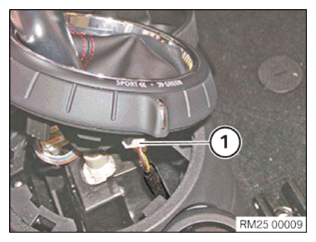

Fig 2: Locating Connector In Vehicles With Driving Mode
G11774505Courtesy of BMW OF NORTH AMERICA, INC.

Push yellow release lever (1) down and hold.

Shift selector lever (2) in "R" direction and let go of yellow release lever again.

Engage Position "N".

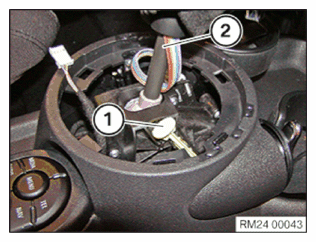

Fig 3: Locating Selector Lever And Yellow Release Lever
G11774506Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Lock connector in vehicles with Driving Mode (1).

Fig 4: Locating Connector In Vehicles With Driving Mode
G11774507Courtesy of BMW OF NORTH AMERICA, INC.

Push retaining ring (1) down until it engages.

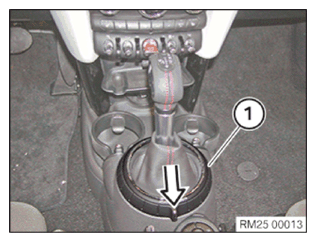

Fig 5: Pushing Retaining Ring Downward
G11774508Courtesy of BMW OF NORTH AMERICA, INC.
