24 61 005 Removing and Installing or replacing the EGS (AISIN F21FT)

Necessary preliminary tasks:

• Clamp off BATTERY EARTH LEAD .
• Remove INTAKE SILENCER HOUSING .

Removal:

Release ball socket (1) from ball stud.

Release the cable (2) from the support angle.

Fig 1: Ball Socket And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1).

Release clamp (2) with wiring harness from transmission and place to one side.

Fig 2: Connector And Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

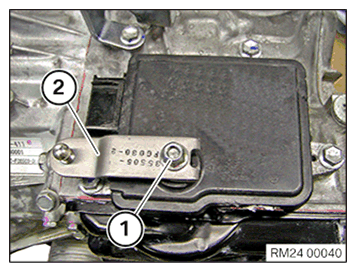

Slacken nut (1).

Remove lever (2).

Fig 3: Lever And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

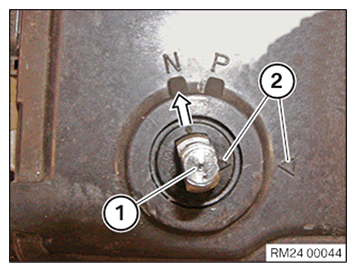

Before removal of the EGS, lever (1) must point towards "N".

The arrows (2) must point to each other.

Fig 4: Lever Position

Courtesy of BMW OF NORTH AMERICA, INC.

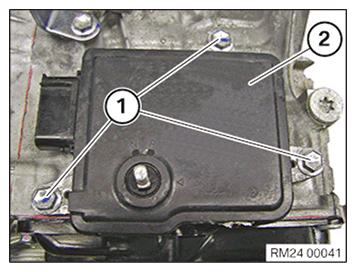

Release screws (1).

Remove the EGS (2).

Fig 5: EGS Screws

Courtesy of BMW OF NORTH AMERICA, INC.

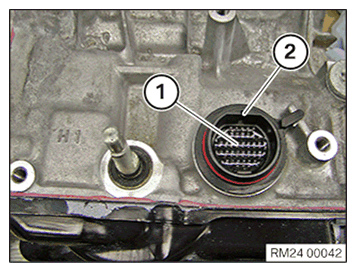

Pins (1) of sealing sleeve (2) must not be touched.

Fig 6: Sealing Sleeve Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Before installation of the EGS, lever (1) must point towards "N".

The arrows (2) must point to each other.

Fig 7: Lever Position

Courtesy of BMW OF NORTH AMERICA, INC.

Install the EGS (2).

Tighten down screws (1).

Tightening torque 24 61 1AZ .

Fig 8: EGS Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Install lever (2).

Tighten nut (1).

Tightening torque 24 61 2AZ .

Fig 9: Lever And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Press in cable (2) into the support angle.

Ensure cable audibly engages.

Press on ball socket (1) onto ball stud.

Fig 10: Ball Socket And Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
