31 00 Mobile table lift

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Injury hazard!

Before beginning work, position table lift with the lower frame securely on the floor.

Area around mechanism below platform is hazardous.

Do not reach into or step into the hazardous area.
Note permissible bearing capacity of table lift.
Mount load centrally (danger of tipping) and secure against shifting.

Follow the operating instructions from the equipment manufacturer.

The mobile table lift is used for collision repairs and when removing large engines.

Adaptations for mounting front axle with engine and transmission.

No. 10	For mounting swivel bearing with brake disc
No. 20	Mounting element for adjustable stand
No. 30	Adjustable stand
No. 40	Distance pin 40 x 160 mm
No. 50	Distance pin 40 x 110 mm
No. 60	Distance pin 40 x 60 mm
No. 70	Stand with U-profile
No. 80	Plate stand dia. =100 mm

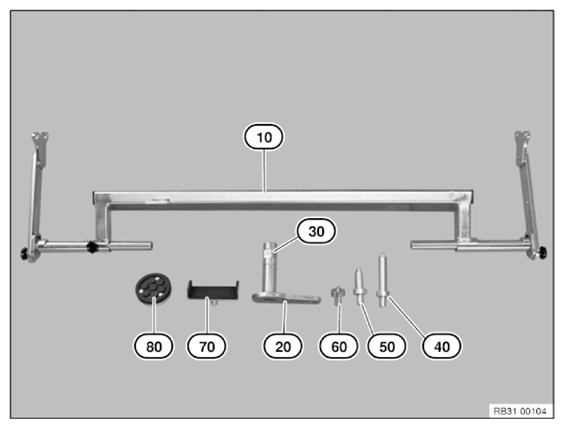

Fig 1: Adaptations For Mounting Front Axle With Engine And Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

Release star knob screw on working plate (B) of table lift; the working surface (B) can be extended by approx. 310 mm.

Release all push-pull clamps and the working plates can be shifted by approx. 20 mm.

Fig 2: Releasing Star Knob Screw On Working Plate Of Table Lift

Courtesy of BMW OF NORTH AMERICA, INC.

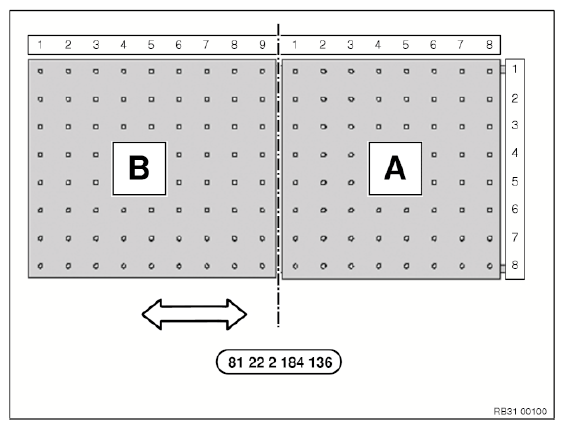

Working plate (A and B) can be raised and lowered by 3° on the long side and by 5° on the transverse side.

Working plate (A and B) is subdivided by a coordinate system and a possible installation position is recommended in the respective repair manual.

IMPORTANT: Follow the operating instructions from the equipment manufacturer.
