31 31 031 Replacing front spring strut shock absorber on right or left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Attention !

When replacing shock absorber/spring strut, replace auxiliary damper!

WARNING: Completely read the respective operating instructions before using special tools 31 3 340 !
Strictly adhere to all safety information and instructions in the operating instructions!
Failure to observe these safety precautions and instructions increases the risk of serious physical injury, damage to your health and damage to property and equipment!

Attention !

Use only the BMW approved special tool!
Prior to each use, check the special tools for defects, modifications and operational reliability.
Damaged/modified special tools must not be used!
No changes or modifications may be made to the special tools!
These special tools are intended solely for the purpose of tightening and relieving cylindrical and tapered suspension springs.
Keep special tools dry, clean and (down to the spindle) free from grease.
Impact screwdrivers are prohibited!
Risk of damage inside the shock absorber!
Do not compress coil spring to full extent.

Necessary preliminary tasks:

Remove FRONT SPRING STRUT .

Removal:

Loosen the nut (2).

Pull out screw (1).

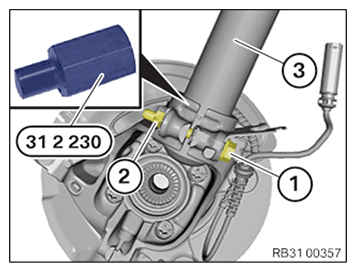

Fig 1: Spring Strut With Special Tool (31 2 230)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove brake hose holder.

Spread the swivel bearing by means of special tool 31 2 230 .

Lift the spring strut (3) out of the swivel bearing.

Fig 2: Pressure Plate (2 240 516)

Courtesy of BMW OF NORTH AMERICA, INC.

Attention !

Risk of damage to the coil spring!

Before application: Check protective insert for wear, replace if necessary.

Use of faulty protective inserts leads to coil spring damage. This can lead to coil spring breakage (corrosion).

Always use the pressure plate 2 240 516 with the protective insert 2 364 829 .

Clamp special tool 31 3 341 in vice.

Fit special tool 2 240 516 and 2 240 482 onto special tool 31 3 341 until retaining bolt (1) can be felt and heard to snap into place.

Insert the centering ring 2 364 828 into the mounting plate 2 240 482 .

Fig 3: Inserting Centering Ring (2 364 828) Into Mounting Plate (2 240 482)

Courtesy of BMW OF NORTH AMERICA, INC.

Check the seating of the special tools 2 240 516 and 2 240 482 by means of the centering ring 2 364 828 , correct if necessary.

Fig 4: Special Tool (31 3 341)

Courtesy of BMW OF NORTH AMERICA, INC.

Set special tool 31 3 341 to dimension A.

Dimension A: 155 - 160 mm

Installation of brake onto mounting plate:

Place counter support 2 240 486 in the correct position/bore hole:

Screw connection using bore holes 7 and 15

Twist the centering ring 2 364 828 until the counter support 2 240 486 can be screwed into place at the specified position.

Fig 5: Counter Support (2 240 486)

Courtesy of BMW OF NORTH AMERICA, INC.

Screw the counter support with the mounting plate and the centering ring with the screws (1) hand-tight!

Fig 6: Inserting Spring Strut Into Spring Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Clean coil spring to remove contamination.

Spring must be free of grease, clean and dry.

Insert spring strut into spring tensioner.

WARNING: The guide pins (1) of the support bearing must fit into the recesses on the centering ring 2 364 828 .
The support bearing must be completely fitted against the centering ring 2 364 828 .
The lower spring coil must be placed completely into the recess of special tool 2 240 516 !

Fig 7: Pressure Plate (2 240 487)

Courtesy of BMW OF NORTH AMERICA, INC.

Attention !

Risk of damage to the coil spring!

Before application: Check protective insert for wear, replace if necessary.

Use of faulty protective inserts leads to coil spring damage. This can lead to coil spring breakage (corrosion).

Always use the pressure plate 2 240 487 with the protective insert 2 412 607 .

Fig 8: Screws (2 240 490)

Courtesy of BMW OF NORTH AMERICA, INC.

Attach pressure plate 2 240 487 with the screws 2 240 490 !

The gummed side of the pressure plate 2 240 487 must be fitted against the top spring coil.

Position the spring strut such that the end of the spring (1) at the pressure plate 2 240 487 protrudes by 15 mm.

Tighten the screws 2 240 490 evenly at 8 Nm.

Attention !

The pressure plate 2 240 487 must be aligned parallel with the top spring coil (1)!

When the end of the spring begins to twist relative to the pressure plate, tensioning must be stopped immediately.

The pressure plate must be checked for correct seating and the rubber-coated facing and pressure plate also checked for wear.

Fig 9: Aligning Parallel With Top Spring Coil

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 10: Checking Coil Spring Dimension On Special Tool (31 3 341)

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten coil spring, until dimension B on special tool 31 3 341 is reached.

Dimension B: 95 - 90 mm

Attention !

Dimension B must not be dropped below!

Release nut with special tool 33 0 040 .

Remove shock absorber from coil spring.

Fig 11: Releasing Nut With Special Tool (33 0 040)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 12: Lower Spring Pad

Courtesy of BMW OF NORTH AMERICA, INC.

Remove lower spring pad (1) from shock absorber.

Installation:

Check lower spring pad (1) for damage, replace if necessary.

Attach lower spring pad (1) to spring cup.

NOTE: Make sure the journal (2) is properly positioned in the bore hole of the spring cup.

Fig 13: Lower Spring Pad And Journal

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Replacing Auxiliary Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Check protective tube/upper spring pad (2) for damage, replace if necessary.

Parts: Auxiliary damper (3)

Replace the auxiliary damper (3).

Insert spring strut into the tensioned coil spring.

Parts: Nut

Tighten the new nut by means of special tool 33 0 040 and torque wrench with box wrench insert.

Tightening torque 31 31 2AZ .

Fig 15: Releasing Nut With Special Tool (33 0 040)

Courtesy of BMW OF NORTH AMERICA, INC.

Impact screwdrivers are prohibited!

Risk of damage inside the shock absorber !

Fig 16: Protective Tube Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

Check installation position of protective tube, correct if necessary.

End of lower coil spring (1) must rest on stop of spring pad (2).

Fig 17: Lower Coil Spring End On Spring Pad Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Align all components correctly to each other and relive tension on coil spring.

RB31 00357

Spread swivel bearing with special tool 31 2 230 .

Fig 18: Aligning Swivel Bearing With Special Tool (31 2 230)

Courtesy of BMW OF NORTH AMERICA, INC.

Align the swivel bearing using the gap to the positioning pin on the rear side of the spring strut (3) and push it on as far as it will go.

Position the brake hose holder.

Parts: Undo screw (1) and nut (2).

Insert new screw (1).

Tighten new nut (2).

Tightening torque 31 31 3AZ .

Required follow-up work:

Install FRONT SPRING STRUT .
