35 11 000 Removing and installing complete bearing support for brake pedal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read and comply with GENERAL INFORMATION .
Remove BRAKE BOOSTER .

Disconnect plug connection (1) on clutch master cylinder.

Disconnect line connection (2).

IMPORTANT: Catch brake fluid in a suitable container.

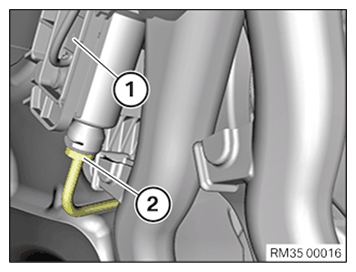

Fig 1: Plug Connection On Clutch Master Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

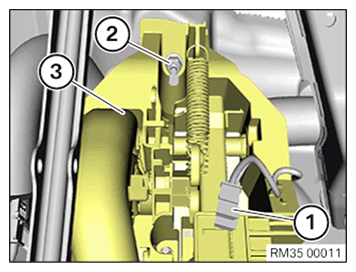

Fig 2: Plug Connection On Brake Light Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on brake light switch.

Undo nut (2) and remove bearing support (3).

Installation note:

Tightening torque 35 11 AZ .

Installation:

IMPORTANT: If required the clutch pedal must be remounted depending on the version of the new bearing block!

This operation is described in: REMOVING and installing clutch pedal

Fig 3: Plug Connection On Brake Light Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Install bearing support (3). Fit nut (2) and tighten. Replace self-locking nuts.

Parts: Nut

Tightening torque 35 11 AZ .

Connect plug connection (1) on brake light switch.

Fig 4: Plug Connection On Clutch Master Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

Connect line connection (2).

Connect plug connection (1) on clutch master cylinder.

Required follow-up work:

Bleed the clutch and brake hydraulics.
