35 40 001 Removing and installing or replacing accelerator pedal module

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Removal:

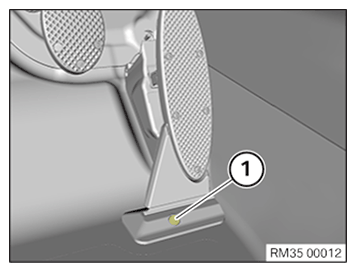

Fig 1: Accelerator Pedal Module Socket Head Cap Screw

G11648562

Courtesy of BMW OF NORTH AMERICA, INC.

Take off cover (1).

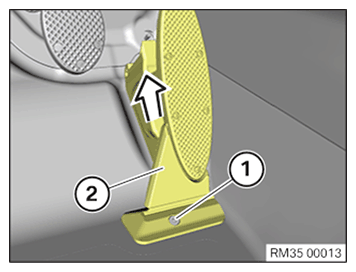

Fig 2: Feeding Out Accelerator Pedal Module

G11648563

Courtesy of BMW OF NORTH AMERICA, INC.

Release socket head cap screw (1).

Feed out accelerator pedal module (2) towards top.

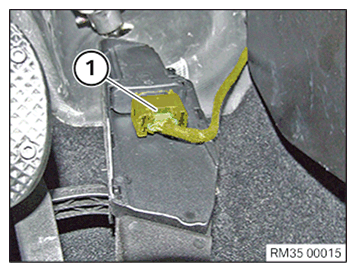

Fig 3: Accelerator Pedal Module Plug Connection

G11648564

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) and remove accelerator pedal module.

Installation:

Connect plug connection (1).

Fig 4: Accelerator Pedal Module Plug Connection

G11648564

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Feeding In Accelerator Pedal Module

G11648566

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in the accelerator pedal module (1) from above.

Fit the hexagon socket-head bolt (2) and tighten.

Tightening torque 35 40 1AZ .

Insert cover (1).

Fig 6: Accelerator Pedal Module Socket Head Cap Screw

G11648562

Courtesy of BMW OF NORTH AMERICA, INC.
