37 14 Removing and installing/replacing control unit for Vertical Dynamic Control (SAS control unit)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The optional equipment system (SAS) is a control unit in which the functions of the suspension control systems and the assist systems are integrated.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.
Preliminary work needed:
- Disconnect BATTERY GROUND LEAD .
Removal:

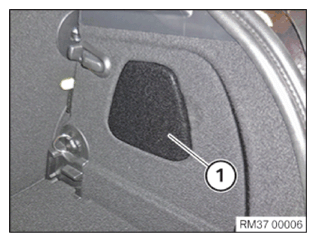

Remove cover (1) of right luggage compartment trim panel.

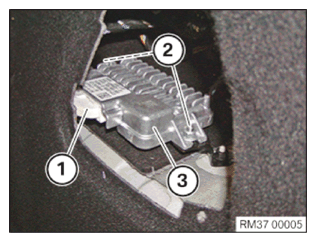

Unscrew nuts (2).
Unlock and disconnect plugs (1).
Remove SAS control unit (3).
Installation:
Connect and lock connector (1).
Position SAS control unit.
Tighten down nuts (2).
Tightening torque 37 14 6AZ .
Install cover (1).
Required follow-up work:
- Replacement only: Perform the PROGRAMMING/CODING .
