Storage Location

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

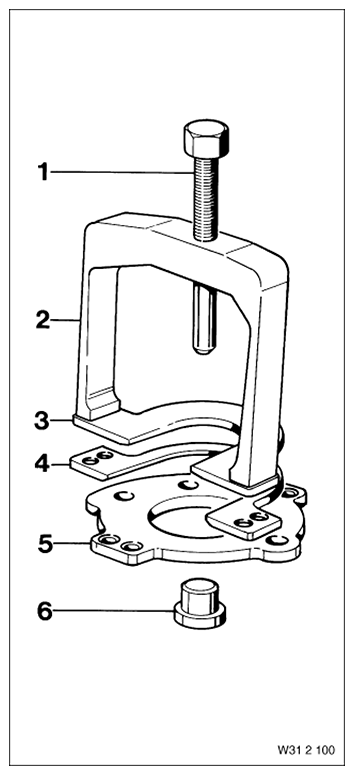

Consisting of:

1 = 0491899 Spindle

NOTE: All rear axle differentials, no longer available separately, only via special tool set 31 2 100 (83 30 0 491 898).

2 = 0491900 Frame

NOTE: All rear axle differentials, no longer available separately, only via special tool set 31 2 100 (83 30 0 491 898).

3 = 0491901 Plate

(Extractor plate) Model series: E28; MINI F56 no longer available separately, only via special tool set 31 2 100 (83 30 0 491 898).

4 = 0491902 Plate

(Extractor plate) Model series: E30 and all rear axle differentials, no longer available separately, only via special tool set 31 2 100 (83 30 0 491 898).

5 = 0491903 Plate

(Extractor plate) - Model series: E31, E32, E36 Replaced by 33 2 201 (0 496 063)

6 = 0491904 Synchronizing key

NOTE: Series: E31, E32, E36 Deletion, only available via tool set
