34 31 170 Replacing brake fluid level switch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove the COWL PANEL COVER on the left.

Removal:

Remove the water outlet (1).

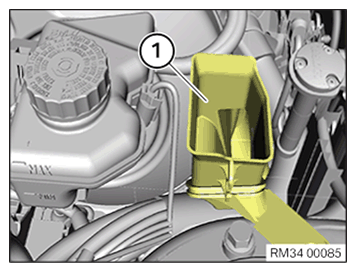

Fig 1: Brake Fluid Switch Water Outlet

G11648459

Courtesy of BMW OF NORTH AMERICA, INC.

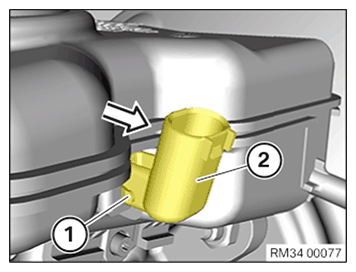

Fig 2: Removing Brake Fluid Switch

G11648460

Courtesy of BMW OF NORTH AMERICA, INC.

Operate retaining lug (1) and remove brake fluid switch (2) in the direction of arrow.

Installation:

Install brake fluid switch (1) in direction of arrow.

IMPORTANT: Make sure retaining lug (2) is engaged correctly.

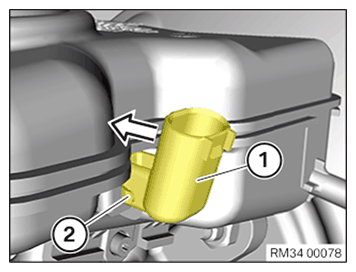

Fig 3: Installing Brake Fluid Switch

G11648461

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Brake Fluid Switch Water Outlet

G11648459

Courtesy of BMW OF NORTH AMERICA, INC.

Install the water outlet (1).
