34 52 535 Replacing a rear pulse sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove the rear WHEEL .
Partially detach the rear WHEEL ARCH PANEL

Removal:

Take the cable out of the bracket (1).

Release screw (2) and remove pulse sensor (3).

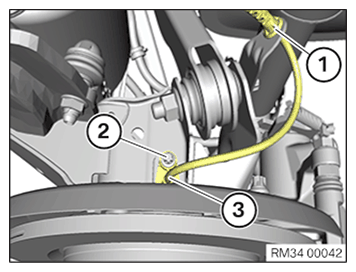

Fig 1: Locating Rear Pulse Sensor Screw And Bracket

G11648538

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Disengage cable from holders (2).

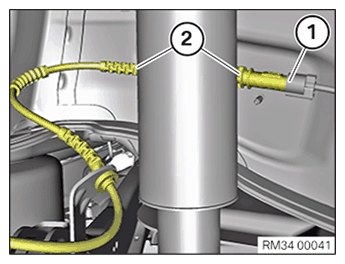

Fig 2: Locating Rear Pulse Sensor Cables Holder

G11648210

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean bore hole for pulse sensor and grease with Staburags NBU 12/K lubricating grease.

IMPORTANT: Check sensor head prior to installation for damage, replacing if necessary.

Fig 3: Front Pulse Sensor Head

G04797051

Courtesy of BMW OF NORTH AMERICA, INC.

Attach brake pad wear sensor in the brackets (2).

Connect plug connection (1).

Fig 4: Locating Rear Pulse Sensor Cables Holder

G11648210

Courtesy of BMW OF NORTH AMERICA, INC.

Install cable in bracket (1).

Install pulse sensor (3).

Fit bolt (2) and tighten.

Tightening torque 34 51 5AZ .

Fig 5: Locating Rear Pulse Sensor Screw And Bracket

G11648538

Courtesy of BMW OF NORTH AMERICA, INC.
