34 35 003 Replacing a brake pad wear sensor (rear)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

The brake Pad wear sensor must be replaced once it has been removed (brake pad wear sensor loses its retention capability in the brake pad).

If a brake pad wear sensor that has already been ground has to be replaced even though the minimum brake pad thickness has not yet been reached, you must observe the following: The new sliding contact must be filed down with a file to the same length as the sanded sliding contact.

When replacing the brake pad wear sensor, a CBS reset needs to be carried out.

If a brake pad wear sensor was replaced without replacing the brake pads, the following needs to be paid attention to:

Carry out service function "CBS correction reset" via diagnosis and information system.

Necessary preliminary tasks:

Remove WHEEL at the rear right.
Partially detach rear WHEEL ARCH PANEL .

Removal:

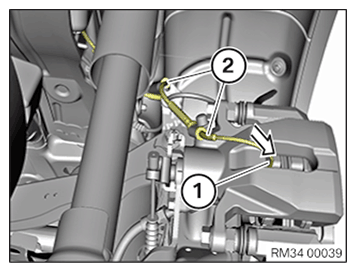

Fig 1: Detaching Brake Pad Wear Sensor From Brake Pad

Courtesy of BMW OF NORTH AMERICA, INC.

Press clamp (1) together and detach brake pad wear sensor (2) in direction of arrow from brake pad.

Detach cable of brake pad wear sensor from brackets (2).

Detach the brake pad wear sensor from the brackets (2).

Fig 2: Locating Plug Connection Of Brake Pad Wear Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Installation:

Fig 3: Installing Brake Pad Wear Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Install brake pad wear sensor (1) in the brake pad in direction of arrow.

IMPORTANT: Make sure clamp (1) and brake pad wear sensor are properly seated in brake pad.

Attach brake pad wear sensor in the brackets (2).

Connect plug connection (1).

Fig 4: Locating Plug Connection Of Brake Pad Wear Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Reset CBS (if applicable).
