00 Safety information for working on vehicles with automatic engine start-stop function (MSA)

WARNING: This page is about a different car, the 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, 2015 MINI Cooper, and 2014 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If the engine hood/bonnet contact is pulled upwards (workshop mode), the information "switch closed" is output. The automatic engine start stop function is active.
An automatic engine start is possible.

Observe safety precautions when working on MSA vehicles.

Before carrying out practical work on the engine, always ensure that the MSA functionality is deactivated so as to prevent automatic engine starting while work is being carried out in the engine compartment.

MSA function is deactivated by:

Deactivate MSA by means of button (1) in passenger compartment
Open seat belt buckle and driver's door

Fig 1: MSA Button

Courtesy of BMW OF NORTH AMERICA, INC.

Open engine bonnet/hood and ensure that engine hood/bonnet contact is not in workshop mode

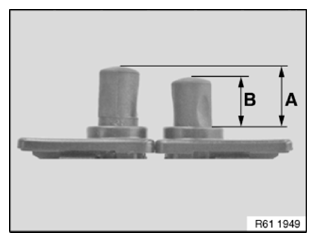

Workshop mode
A = 10 mm
Basic setting (engine hood/bonnet open)

B = 7 mm

Fig 2: Workshop Mode And Basic Setting

Courtesy of BMW OF NORTH AMERICA, INC.

To make sure that the engine hood/bonnet contact is at the basic setting, if necessary press the hood/bonnet contact up to the limit position before starting work and slowly release.

When working with diagnosis tools:

Observe instructions in diagnosis tool
