72 00... Replacing the seat belt clip

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 5 040

NOTE: If the position of the seat belt clip (1) cannot be identified, the position of the seat belt clip on the opposite side of the vehicle is used.

Insert the belt clip (1) in the previous position on the safety belt (2).

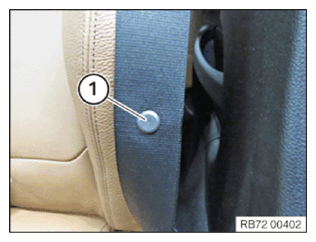

Fig 1: Positioning Seat Belt Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Mount the counterpiece (1).

Press the belt clip with special tool 00 5 040 .

Check that the belt clip and counterpiece (1) are firmly seated.

NOTE: If the seat belt clip is pressed too firmly, the counterpiece may loosen (1).

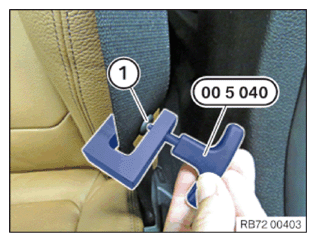

Fig 2: Checking Belt Clip And Counterpiece

Courtesy of BMW OF NORTH AMERICA, INC.
