33 00... Rear axle repair work requiring subsequent wheel alignment

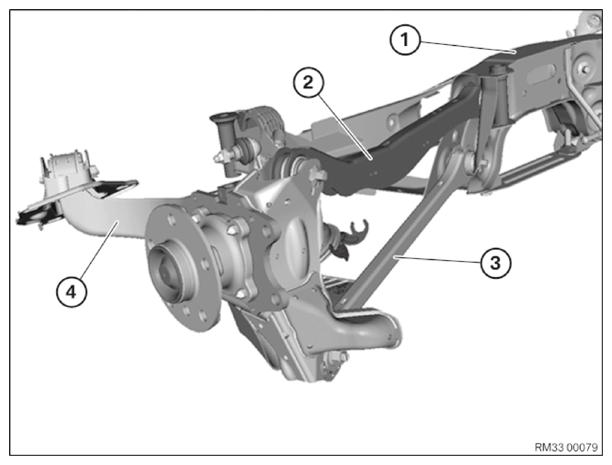

Fig 1: Overview Of Rear Axle Components

Courtesy of BMW OF NORTH AMERICA, INC.

Perform wheel alignment after the following repair work:

• Release the following screw connection:
  • Trailing arm bearing support to body
  • Upper wishbone to rear axle carrier
  • Bottom wishbone at the rear axle support/trailing arm
• Replacement of following parts:
  1. Rear axle carrier
  2. Upper wishbone
  3. Lower wishbone
  4. Trailing arm/trailing arm bearing support/rubber mount

For alignment procedure, refer to ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION  or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
