31 00... Front axle + steering repair work requiring subsequent wheel alignment
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
Perform wheel alignment after the following repair work:
- Release the following screw connection:
- Steering box to front axle support
- Tie rod end to tie rod
- Wishbone to front axle support

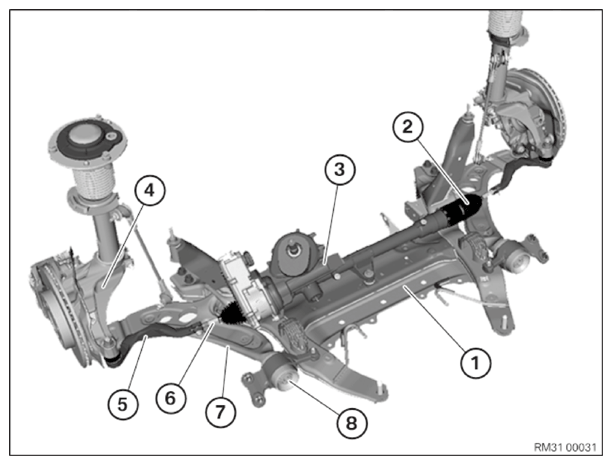

- Replacement of following parts:
- Front axle carrier
- Bellows (if the tie rod end has to be screwed off)
- Steering gear
- Swivel bearing
- Tie rod end
- Tie rod
- Wishbone
- Rubber mount with holder for wishbone
For alignment procedure, refer to ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
