65 24 020 Removing and installing/replacing wave trap

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TAILGATE TRIM at bottom.

REMOVAL:

Unlock plug connections (1) and disconnect.

Release screw (2).

Remove wave trap (3).

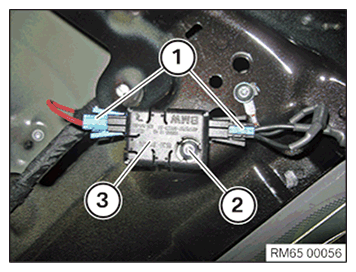

Fig 1: Locating Aerial Amplifier Screws And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

NOTE: Ensure rejector circuit (3) is fitted correctly.

Position wave trap (3).

Tighten screw (2).

Join and lock plug connections (1).

Fig 2: Locating Aerial Amplifier Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
