65 77 532 Removing and installing/replacing front left/right sensor (US version only)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect BATTERY EARTH LEAD
Remove the FRONT LEFT HEADLIGHTS

Removal:

Unfasten plug connection (1) and disconnect.

Release screw (2) and remove sensor.

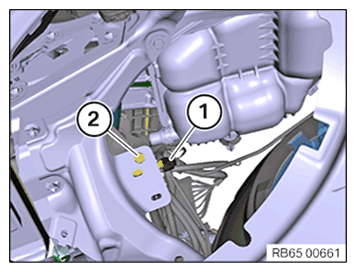

Fig 1: Locating Front Left Sensor Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Correctly position the sensor and tighten the screw (2).

Tightening torque 65 77 2AZ .

Connect and lock plug connection (1).

Fig 2: Locating Front Left Sensor Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.
