52 26 201 Removing and installing/replacing rear panel on rear seat backrest
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of injury!
The seat frame has very sharp edges that can cause injuries from cuts.
Exercise extreme caution and wear work gloves as required when carrying out any repair work in the area of the seat frame.
The seat frame has very sharp edges that can cause injuries from cuts.
Exercise extreme caution and wear work gloves as required when carrying out any repair work in the area of the seat frame.
Necessary preliminary tasks:
- Remove BACKREST FOR REAR SEAT on left or right
Removal:
Version with lashing eye:

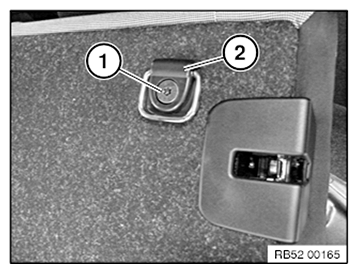

Release screw (1).
Remove lashing eye (2) from backrest.
Insert screwdriver into the trim (1) and lightly push the latch mechanism downwards into area (2).
Feed trim (1) outwards.
Lever out welt (1).
Pull out and remove the rear panel (2) in lower area (3).
Installation:
Feed in rear panel (1) in area (2).
Attach welt (3).
Insert trim (1) in area (2).
Clip in trim (1) in area (3).
NOTE:
Make sure the trim (1) is engaged properly.
Version with lashing eye:
Install lashing eye (2) in backrest.
Tighten screw (1).
Tightening torque 52 26 6AZ .
