52 13... Removing and installing/exchanging guide for left or right front seat head restraint

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 070

Preliminary work needed:

Remove HEAD RESTRAINT

Removal:

Insert special tool 52 0 070 into guide hole of sleeve (2) up to upper area of retaining lug.

Feed in unlocking guide of special tool behind the detent (1).

Turn tool to release sleeve (2) and pull out by lifting upwards.

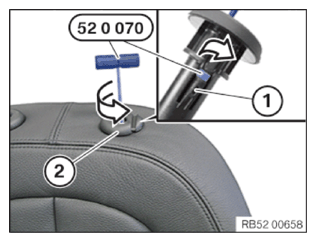

Fig 1: Releasing Sleeve Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert guide (1) from above and engage.

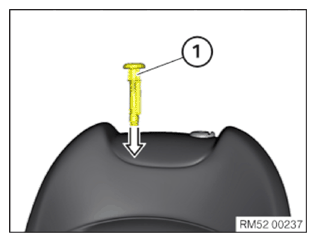

Fig 2: Inserting Head Restraint Guide

Courtesy of BMW OF NORTH AMERICA, INC.
