52 13 055 Removing and installing lumbar support on front seat

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!
The seat frame has very sharp edges that can cause injuries from cuts.
Exercise extreme caution and wear work gloves as required when carrying out any repair work in the area of the seat frame.

Necessary preliminary tasks:

Remove the FACING WITH SEAT COVER FOR FRONT SEAT BACKREST

Removal:

Use of a universal seat mount is recommended for carrying out professional repairs.

Fig 1: Universal Seat Mount

G11649527

Courtesy of BMW OF NORTH AMERICA, INC.

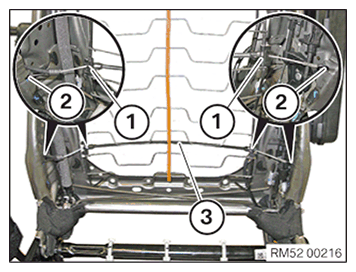

Detach lumbar support (3) from brackets (1) and frame (2).

Fig 2: Lumbar Support, Brackets And Frame

G11649548

Courtesy of BMW OF NORTH AMERICA, INC.

Cover working area and drill out rivet (1).

Remove adjuster (2) and take it out with the Bowden cable from the seat.

Fig 3: Rivet And Adjuster

G11649549

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit the adjusting unit (2) with Bowden cable into seat.

Mount rivet (1).

Parts: Replace rivet (1).

Fig 4: Rivet And Adjuster

G11649549

Courtesy of BMW OF NORTH AMERICA, INC.

Attach lumbar support (3) in brackets (1) and frame (2).

Fig 5: Lumbar Support, Brackets And Frame

G11649551

Courtesy of BMW OF NORTH AMERICA, INC.
