84 31 020 Removing and installing/replacing hands-free system speaker

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR INSTRUMENT PANEL AT BOTTOM RIGHT

Removal:

Unlock latch mechanisms and remove speaker (1) from instrument panel trim (2).

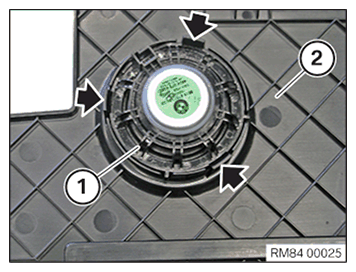

Fig 1: Unlocking Latch Mechanisms Of Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Latch mechanisms must not be damaged
Speaker (1) must snap audibly into place in bracket.
Guide lugs of bracket must be seated in grooves of speaker (1).

Join speaker (1) into instrument panel trim (2).

Fig 2: Unlocking Latch Mechanisms Of Speaker

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install BOTTOM RIGHT INSTRUMENT PANEL TRIM
