66 33 008 Removing and installing/replacing park assist control unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL:

Open flap (1) in right luggage compartment wheel arch panel (2).

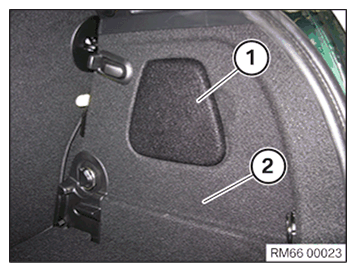

Fig 1: Locating Flap For Park Assist Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Unlock latch mechanisms (2).

Pull out park assistant control unit (3).

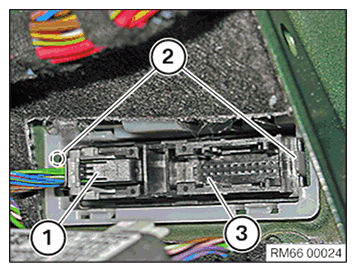

Fig 2: Park Assist Control Unit Parts Location

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .

INSTALLATION:

NOTE: Ensure parking maneuvering assistant control unit (1) is correctly engaged.

Insert parking maneuvering assistant control unit (3) correctly.

Join and lock plug connections (1).

Fig 3: Park Assist Control Unit Parts Location

Courtesy of BMW OF NORTH AMERICA, INC.

Insert flap (1) correctly in right luggage compartment wheel arch panel (2) and close.

Fig 4: Locating Flap For Park Assist Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
