66 20 537 Removing and installing/replacing one rear middle right ultrasonic sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!

Work on the exhaust system may only be carried out when it has cooled down!

REMOVAL:

Unfasten plug connection (1) and disconnect.

Unlock latches at marked points.

Remove ultrasonic sensor (2) from holder.

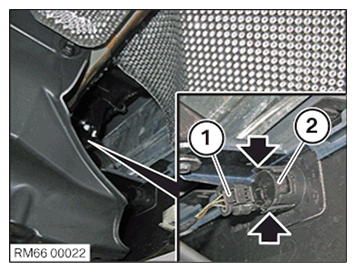

Fig 1: Removing Ultrasonic Sensor From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

NOTE: Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).

Fig 2: Locating Ultrasonic Sensor Rubber Ring

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Before installation of ultrasonic sensor (2) on wiring harness, clean plug connection!

Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).

Fig 3: Locating Ultrasonic Sensor Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Engage ultrasonic sensor (2) in holder.

Join and lock plug connection (1).

Fig 4: Removing Ultrasonic Sensor From Holder

Courtesy of BMW OF NORTH AMERICA, INC.
