66 20 536 Removing and installing/replacing a rear middle left ultrasonic transducer
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Risk of burning!
Work on the exhaust system may only be carried out when it has cooled down!
REMOVAL:
Version with side exhaust tailpipe with heat shield:

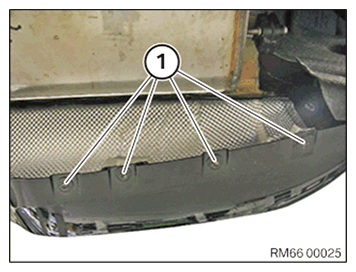

Release screws (1).
Version with center exhaust tailpipe:

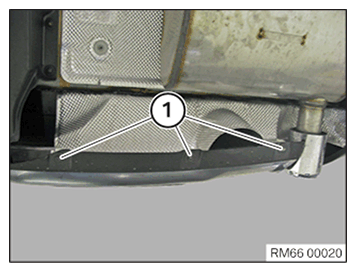

Release screws (1).

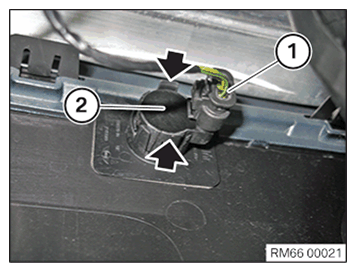

Unfasten plug connection (1) and disconnect.
Unlock latches at marked points.
Remove ultrasonic sensor (2) from holder.
INSTALLATION:
NOTE:
Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).
NOTE:
Before installation of ultrasonic sensor (2) on wiring harness, clean plug connection!
Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).
Engage ultrasonic sensor (2) in holder.
Join and lock plug connection (1).
Version with side exhaust tailpipe with heat shield:
Tighten down screws (1).
Version with center exhaust tailpipe:
Tighten down screws (1).
