66 20 535 Removing and installing/replacing rear right ultrasonic sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL:

Release screw (1).

Place wheel arch cover (2) slightly to one side.

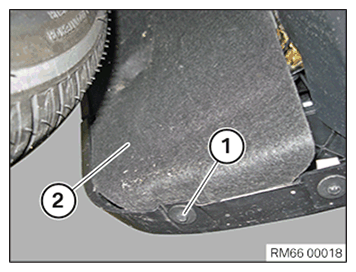

Fig 1: Locating Wheel Arch Cover Screw

G11650361

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Unlock latches at marked points.

Remove ultrasonic sensor (2).

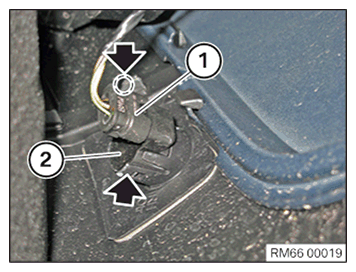

Fig 2: Locating Ultrasonic Sensor Plug Connections

G11650362

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

NOTE: Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).

Fig 3: Locating Ultrasonic Sensor Rubber Ring

G04728003

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Before installation of ultrasonic sensor (2) on wiring harness, clean plug connection!

Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).

Fig 4: Locating Ultrasonic Sensor Retaining Hooks

G04728002

Courtesy of BMW OF NORTH AMERICA, INC.

Engage ultrasonic sensor (2) in holder.

Join and lock plug connection (1).

Fig 5: Locating Ultrasonic Sensor Plug Connections

G11650362

Courtesy of BMW OF NORTH AMERICA, INC.

Position wheel arch cover (2) correctly.

Tighten screw (1).

Fig 6: Locating Wheel Arch Cover Screw

G11650361

Courtesy of BMW OF NORTH AMERICA, INC.
