66 20 534 Removing and installing/replacing one rear left ultrasonic sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Risk of burning!

Work on the exhaust system may only be carried out when it has cooled down!

REMOVAL:

Unfasten plug connection (1) and disconnect.

Unlock latches at marked points.

Ultrasonic sensor (2)

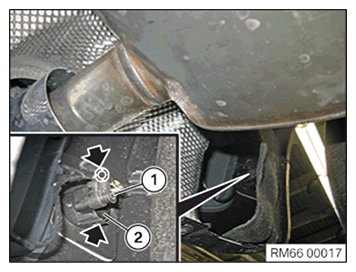

Fig 1: Unlocking Rear Left Ultrasonic Sensor Latches

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

NOTE: Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).

Fig 2: Locating Ultrasonic Sensor Rubber Ring

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Before installation of ultrasonic sensor (2) on wiring harness, clean plug connection!

Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).

Fig 3: Locating Ultrasonic Sensor Retaining Hooks

Courtesy of BMW OF NORTH AMERICA, INC.

Engage ultrasonic sensor (2) in holder.

Unfasten plug connection (1) and disconnect.

Fig 4: Locating Rear Left Ultrasonic Sensor Engaging Position

Courtesy of BMW OF NORTH AMERICA, INC.
