66 20 515 Removing and installing/replacing a front left (outside) ultrasonic transducer (Park Distance Control)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Partially remove WHEEL ARCH COVER AT FRONT LEFT

REMOVAL:

Unfasten plug connection (1) and disconnect.

Release catches (2).

Remove ultrasonic sensor (3).

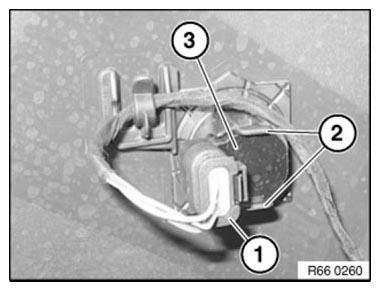

Fig 1: Locating Ultrasonic Sensor Catches

G06886529

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

NOTE: Make sure rubber ring (1) is correctly seated on ultrasonic sensor (2).

Fig 2: Locating Ultrasonic Sensor Rubber Ring

G04728003

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Before installation of ultrasonic sensor (2) on wiring harness, clean plug connection!

Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).

Fig 3: Locating Ultrasonic Sensor Retaining Hooks

G04728002

Courtesy of BMW OF NORTH AMERICA, INC.

Join and lock plug connection (1).

Engage ultrasonic sensor (3) in holder.

Fig 4: Locating Ultrasonic Sensor Catches

G06886529

Courtesy of BMW OF NORTH AMERICA, INC.
