2360906 Adapter cable Minimum set: Measuring and testing equipment MP: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

In conjunction with: Adapter cable in combination with test cable 2214015 only

NOTE: Adapter cable, 48-pin, for diagnostic work on engine control unit "MEVD 17.2.2". Only in connection with adapter cable 83 30 2 214 015. Adapter cables are hung up together in the cable cabinet at the storage location of adapter cable 83 30 2 214 015.

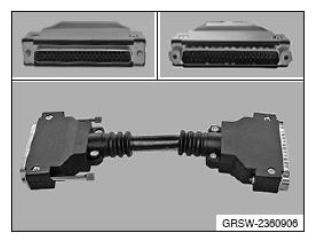

Fig 1: Identifying Adapter Cable (2360906)
G11018933Courtesy of BMW OF NORTH AMERICA, INC.
