11 34 560 Replacing all valve stem seals (B48, B46)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove VALVE SPRINGS

Removal:

Disassemble valve stem seal (1) with special tool 11 1 480 .

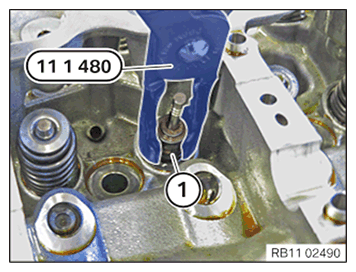

Fig 1: Disassembling Valve Stem Seal With Special Tool (11 1 480)

G11645175

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: The contact surface (1) must be clean.

Fig 2: Contact Surface

G11645176

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the valve stem seal (1).

Position the new valve stem seal (1) in special tool 11 6 380 .

Fig 3: Positioning Valve Stem Seal In Special Tool (11 6 380)

G11645177

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Risk of damage to the sealing lip!

Press on valve stem seal (1) to stop using special tool 11 6 380 in direction of arrow.

Fig 4: Pressing Valve Stem Seal To Stop Using Special Tool (11 6 380)

G11645178

Courtesy of BMW OF NORTH AMERICA, INC.
