11 65 300 Removing and installing/replacing electrical controller drive for wastegate valve (B48, B46): Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Unless otherwise described, the following operations are carried out from above!

Release screws (1) on left heat shield (3).

Release left heat shield (3) from guide pin (2) and remove.

Fig 1: Left Heat Shield, Guide Pin And Screws

G11645470

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on upper heat shield.

Fig 2: Upper Heat Shield Screws

G11645471

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on upper heat shield (2).

Feed out and remove upper heat shield (2).

Fig 3: Upper Heat Shield And Screw

G11645472

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock connector (1) and pull off.

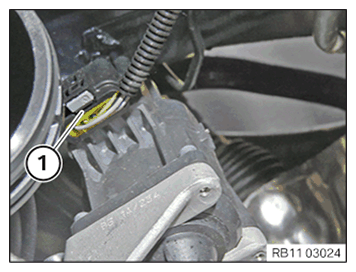

Fig 4: Electrical Controller Drive Connector

G11645473

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock clamp (1) and detach it at top.

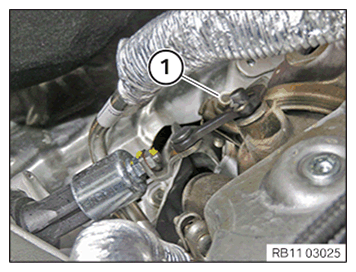

Fig 5: Electrical Controller Drive Clamp

G11645474

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicle production up to and including 01/2016:

NOTE: Carry out operation from below!

Release screws (1).

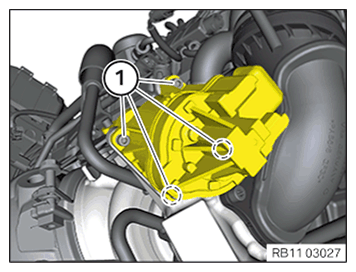

Fig 6: Electrical Controller Drive Screws

G11645475

Courtesy of BMW OF NORTH AMERICA, INC.

Detach electrical controller drive linkage from the wastegate valve.

Remove electrical controller drive (1).

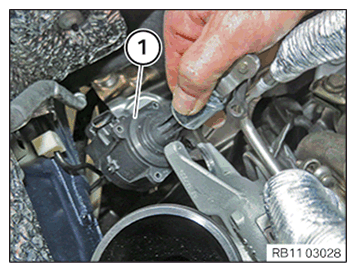

Fig 7: Removing/Installing Electrical Controller Drive

G11645476

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicle production from 02/2016:

NOTE: Carry out operation from below!

Release screws (1).

Detach electrical controller drive linkage (1) from the wastegate valve.

Remove electrical controller drive (1).

Fig 8: Electrical Controller Drive Screws

G11645475

Courtesy of BMW OF NORTH AMERICA, INC.
