Mounting engine on assembly stand (B48, B46)

Special tools required:

• 00 2 300
• 00 2 320
• 2 288 357
• 11 9 030
• 11 0 070

Preliminary work needed:

• Remove ENGINE WITH TRANSMISSION
• Remove TRANSMISSION .
• Drain off MOTOR OIL

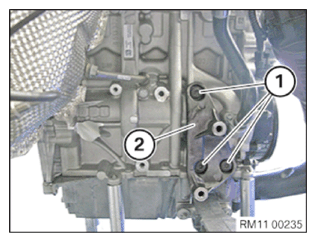

Unscrew the screws (1).

Remove adapter plate (2).

Tightening torque: 11 11 5AZ .

Fig 1: Locating Adapter Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

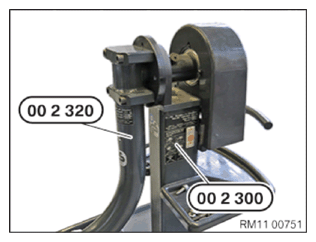

Prepare special tool 00 2 300 together with special tool 00 2 320 (00 2 321).

Fig 2: Preparing Special Tool (00 2 300) With Special Tool (00 2 320)

Courtesy of BMW OF NORTH AMERICA, INC.

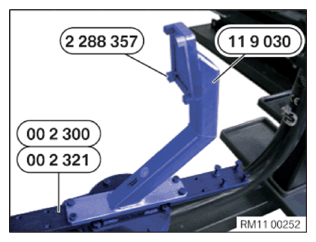

Prepare special tool 2 288 357 together with special tool 11 9 030 .

Fig 3: Preparing Special Tool (2 288 357) With Special Tool (11 9 030)

Courtesy of BMW OF NORTH AMERICA, INC.

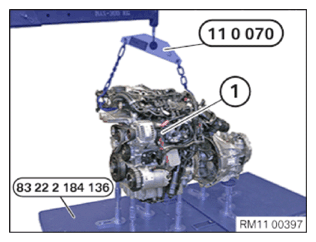

Lift engine (1) with workshop crane and special tool 11 0 070 from table lift (83 22 2 184 136).

Fig 4: Attaching Workshop Crane

Courtesy of BMW OF NORTH AMERICA, INC.

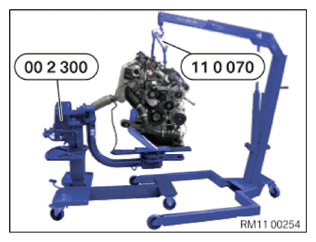

Lift engine with workshop crane onto assembly stand.

Fig 5: Lifting Engine With Workshop Crane Onto Assembly Stand

Courtesy of BMW OF NORTH AMERICA, INC.

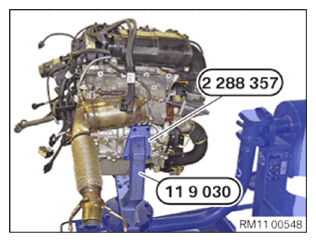

Bolt special tools 11 9 030 and 2 288 357 to engine.

Tightening torque: 11 11 5AZ .

Secure special tool 11 9 030 to assembly stand 00 2 300 .

Tightening torque: 11 11 5AZ .

Fig 6: Securing Special Tool (11 9 030) To Assembly Stand

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Top up MOTOR OIL
