11 00 Removing and installing/replacing acoustic cover (B48, B46)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL:

Lift acoustic cover (1) from mountings.

Remove acoustic cover upwards.

Fig 1: Removing Acoustic Cover Upwards
G11774414Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

Mountings (1) must not be damaged or missing.

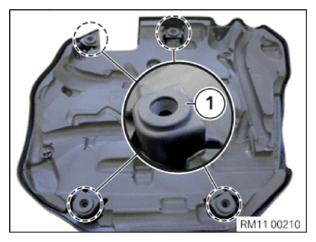

Fig 2: Acoustic Cover Mountings
G11774415Courtesy of BMW OF NORTH AMERICA, INC.

Align acoustic cover (1).

Press acoustic cover (1) into mountings.

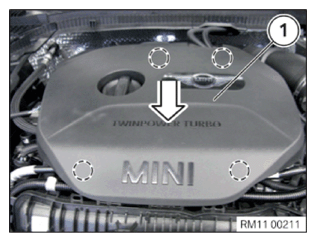

Fig 3: Pressing Acoustic Cover Into Mountings
G11774416Courtesy of BMW OF NORTH AMERICA, INC.
