11 28... Tensioning/releasing alternator drive belt (B48, B46)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Preliminary work needed:

If necessary, carry out work with aid of a second person.

Removal:

Release expansion rivet (1).

Release screw (2).

Remove partition wall (3).

Fig 1: Line And Screws
G11645540Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Unclip line (2).

Fig 2: Line And Screws
G11645410Courtesy of BMW OF NORTH AMERICA, INC.

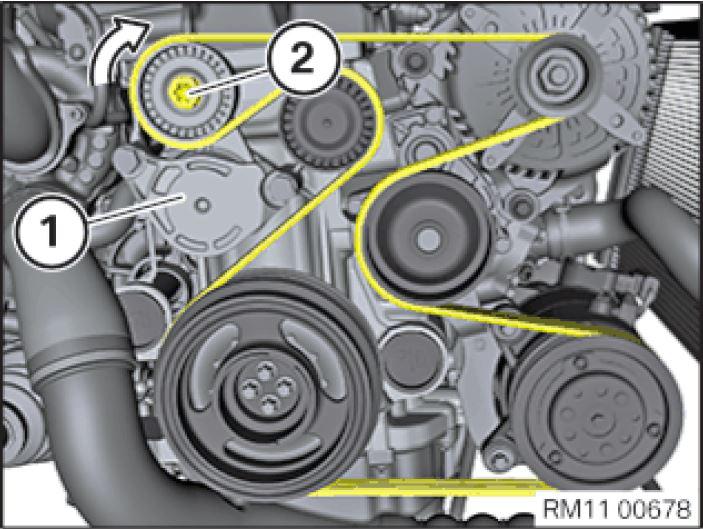

WARNING: Injury hazard when tensioning or releasing the drive belt. Release belt tensioner (1) on screw (2) in arrow direction (refer to the following instructions).
Fig 3: Releasing Belt Tensioner
G00554468Courtesy of BMW OF NORTH AMERICA, INC.

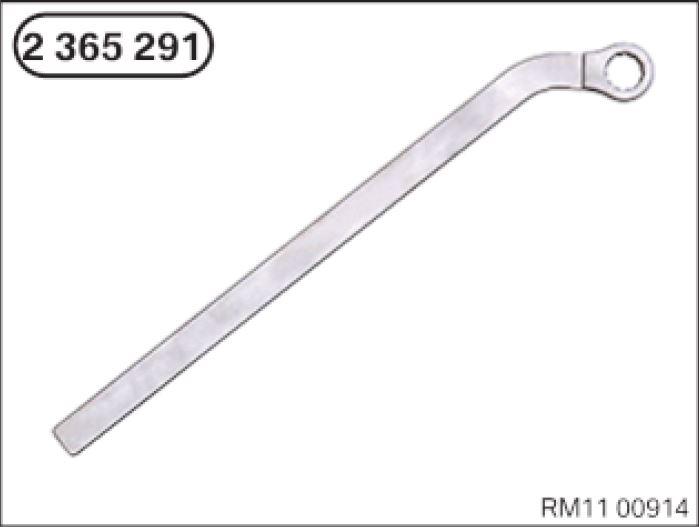

Use special tool 2 365 291 to release belt tensioner.

Fig 4: Special Tool 2 365 291
G00554469Courtesy of BMW OF NORTH AMERICA, INC.

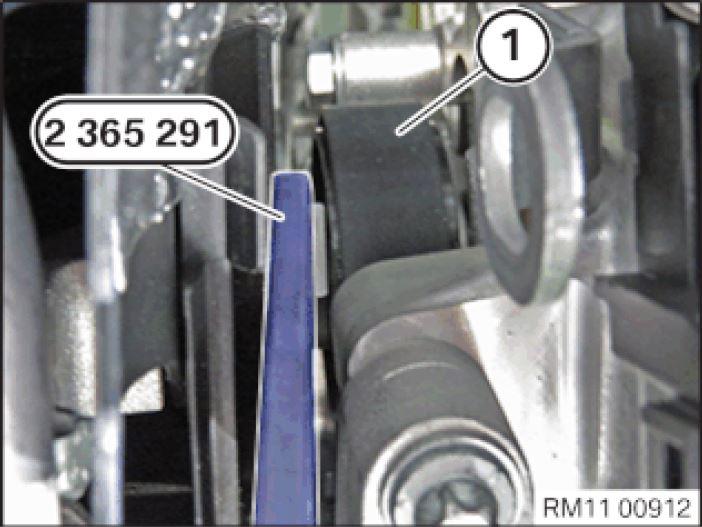

Position special tool 2 365 291 on the idler pulley of the belt tensioner.

Fig 5: Positioning Special Tool 2 365 291 On Idler Pulley
G00554470Courtesy of BMW OF NORTH AMERICA, INC.

Unclip fuel lines from bracket.

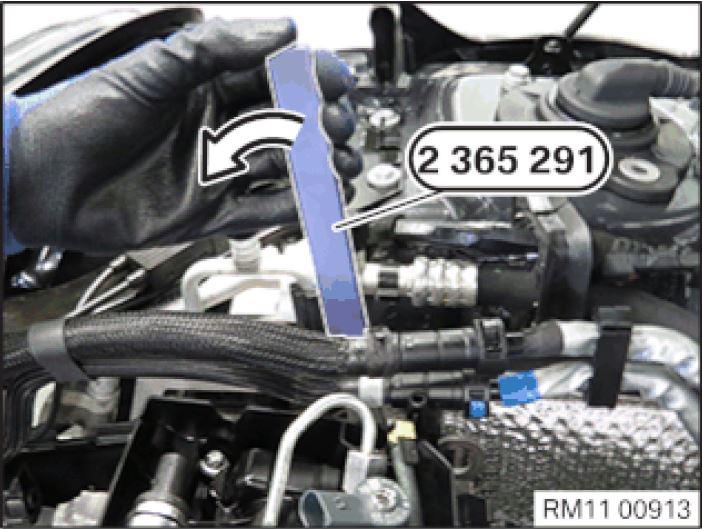

Release belt tensioner with special tool 2 365 291 in arrow direction.

Fig 6: Releasing Belt Tensioner
G00554471Courtesy of BMW OF NORTH AMERICA, INC.

Operation needs to be carried out by a second person helping.

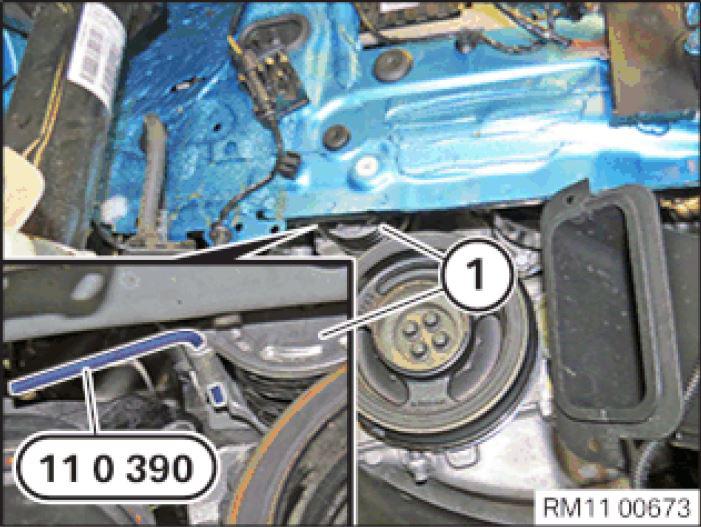

Secure belt tensioner (1) in place with special tool 11 0 390.

Fig 7: Locking Belt Tensioner With Special Tool 11 0 390
G00554472Courtesy of BMW OF NORTH AMERICA, INC.

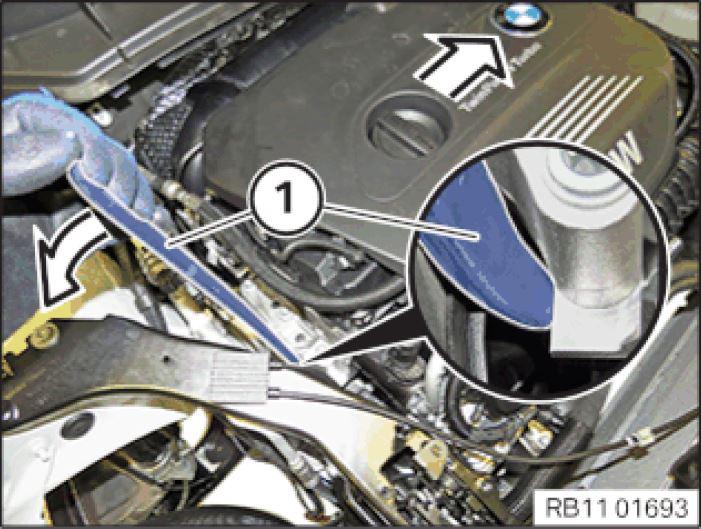

NOTE: If the special tool 11 0 390 cannot be mounted, the engine must be pushed slightly (max. 3 mm) at the engine mount in the direction of the arrow using the mounting lever (1).
Fig 8: Pushing At Engine Mount Using Lever
G00554473Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Tighten down screws (1) with specified torque.

Tightening torque: 11 00 2AZ .

Fig 9: Line And Screws
G11645410Courtesy of BMW OF NORTH AMERICA, INC.
