63 99... Replacing bulb for interior roof light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow instructions for HANDLING LIGHT BULBS (INTERIOR LIGHTS) .

Preliminary work needed:

Remove INTERIOR ROOF LIGHT

Removal:

Release the light holder (1) by turning counterclockwise and pull it out of the interior roof light.

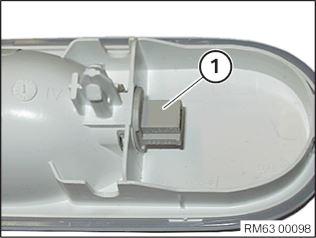

Fig 1: Holder For Interior Roof Light

G00554482

Courtesy of BMW OF NORTH AMERICA, INC.

Pull the bulb (1) out of the light holder (2).

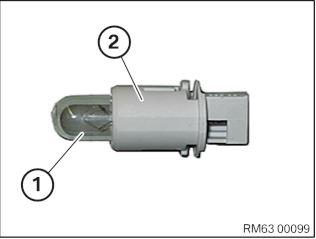

Fig 2: Holder And Bulb

G00554483

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Note BULB TYPE .

Join the bulb (1) into the light holder (2).

Fig 3: Holder And Bulb

G00554483

Courtesy of BMW OF NORTH AMERICA, INC.

Place the light holder (1) into the interior roof light and lock by turning clockwise.

Fig 4: Holder For Interior Roof Light

G00554482

Courtesy of BMW OF NORTH AMERICA, INC.
