63 99... Notes for replacing the protective cap of the headlight

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!

Damaged seals on the protective caps will lead to moisture penetration into the headlight.

This will in turn cause porous cable insulations and malfunctioning of the headlight.

When working on the headlight system, check the protective cap seals.

Replace the protective cap in the event of damage!

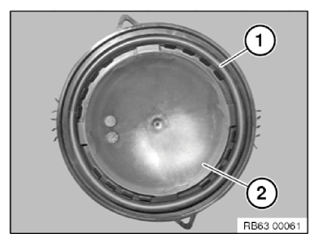

Example: screwed protective cap

Seal (1) on protective cap (2).

Fig 1: Example Of Screwed Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

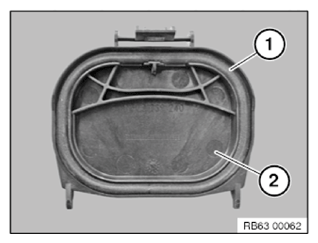

Example: latchable protective cap

Seal (1) on protective cap (2).

Fig 2: Example Of Latchable Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.
