63 99 273 Replacing bulb for turn indicator, front left/right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow the SAFETY INSTRUCTIONS for handling bulbs/light sources (exterior lights).

Removal:

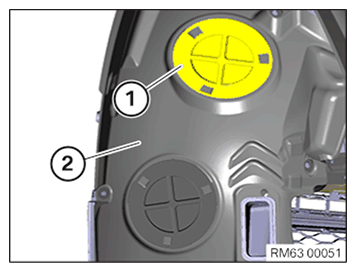

Release cover (1) by turning counter clockwise and remove from wheel arch cover (2).

Fig 1: Cover And Wheel Arch Cover

G11650107

Courtesy of BMW OF NORTH AMERICA, INC.

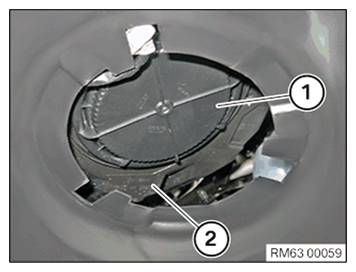

Release end cover (1) by turning anti-clockwise and remove from headlight (2).

Fig 2: End Cover And Headlight

G11650108

Courtesy of BMW OF NORTH AMERICA, INC.

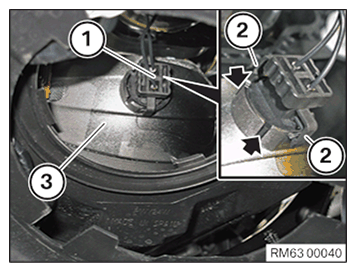

Release bulb holder (1) on latch mechanisms (2) and pull out of headlight (3).

Fig 3: Bulb Holder, Latch Mechanisms And Headlight

G11650109

Courtesy of BMW OF NORTH AMERICA, INC.

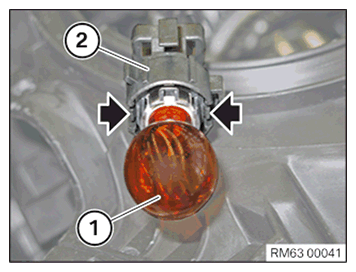

Release bulb for turn indicator (1) on latch mechanisms and pull out of bulb holder (2).

Fig 4: Turn Indicator And Bulb Holder

G11650110

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join bulb for turn indicator (1) in bulb holder (2).

NOTE: Note BULB TYPE .

Fig 5: Turn Indicator And Bulb Holder

G11650110

Courtesy of BMW OF NORTH AMERICA, INC.

Join bulb holder (1) in headlight (3).

NOTE: Bulb holder is secured against incorrect assembly.

Fig 6: Bulb Holder, Latch Mechanisms And Headlight

G11650109

Courtesy of BMW OF NORTH AMERICA, INC.

Join end cover (1) in headlight (2) and turn clockwise up to limit position.

NOTE: Make sure cover (1) is correctly locked.

Fig 7: End Cover And Headlight

G11650108

Courtesy of BMW OF NORTH AMERICA, INC.

Join end cover (1) in wheel arch cover and turn clockwise up to limit position.

NOTE: Make sure cover (1) is correctly locked.

Fig 8: Cover And Wheel Arch Cover

G11650107

Courtesy of BMW OF NORTH AMERICA, INC.
