63 99 225 Replacing bulb for front left or right position light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow the SAFETY INSTRUCTIONS for handling bulbs/light sources (exterior lights).

Removal:

Release cover (1) by turning anti-clockwise and remove from wheel arch panel (2).

Fig 1: Cover And Wheel Arch Panel

G11650085

Courtesy of BMW OF NORTH AMERICA, INC.

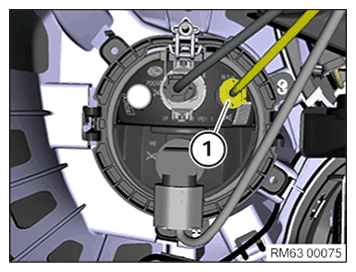

Unlock and disconnect the connector (1).

Fig 2: Position Light Connector

G11650098

Courtesy of BMW OF NORTH AMERICA, INC.

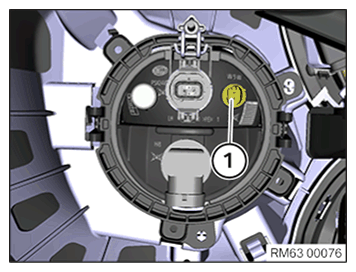

Pull bulb holder (1) out of position light.

Fig 3: Bulb Holder

G11650099

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out bulb for position light (1) from bulb holder (2).

Fig 4: Pulling Out Bulb For Position Light From Bulb Holder

G04798132

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Note BULB TYPE .

Insert bulb for position light (1) into bulb holder (2).

Fig 5: Pulling Out Bulb For Position Light From Bulb Holder

G04798132

Courtesy of BMW OF NORTH AMERICA, INC.

Join bulb holder (1) in position light.

Fig 6: Bulb Holder

G11650099

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the plug (1).

Fig 7: Position Light Connector

G11650098

Courtesy of BMW OF NORTH AMERICA, INC.

Join cover (1) in wheel arch panel (2), and turn clockwise up to limit position.

NOTE: Make sure cover (1) is correctly locked.

Fig 8: Cover And Wheel Arch Panel

G11650085

Courtesy of BMW OF NORTH AMERICA, INC.
