63 99 110 Replacing bulb for daytime driving lights, left/right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow the SAFETY INSTRUCTIONS for handling bulbs/light sources (exterior lights).

Removal:

Release cover (1) by turning counter clockwise and remove from wheel arch panel (2).

Fig 1: Cover And Wheel Arch Panel

G11650085

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect the connector (1).

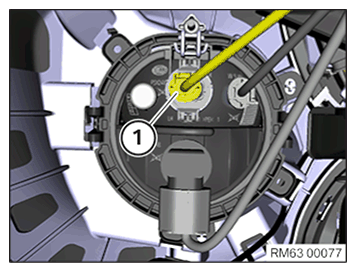

Fig 2: Daytime Driving Lights Connector

G11650086

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock bulb holder (1) and pull out of daytime running light (2).

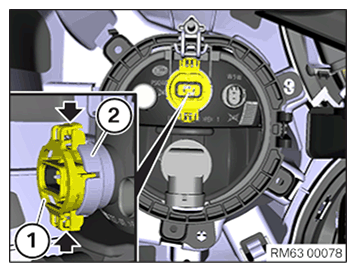

Fig 3: Bulb Holder And Daytime Running Light

G11650087

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Note BULB TYPE .

Join bulb holder (1) in daytime running light (2).

NOTE: Make sure bulb holder (1) is correctly fitted and engaged in daytime running light (2).

Fig 4: Bulb Holder And Daytime Running Light

G11650087

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the plug (1).

Fig 5: Daytime Driving Lights Connector

G11650086

Courtesy of BMW OF NORTH AMERICA, INC.

Join cover (1) in wheel arch panel (2), and turn clockwise up to limit position.

NOTE: Make sure cover (1) is correctly locked.

Fig 6: Cover And Wheel Arch Panel

G11650085

Courtesy of BMW OF NORTH AMERICA, INC.
