63 31 320 Replacing the LED module in the front door trim panel on the left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT DOOR TRIM PANEL

Removal:

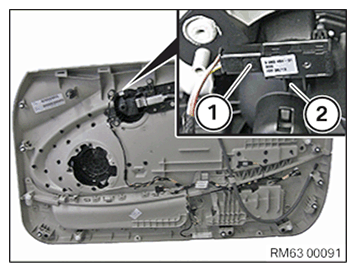

Door opener

Disconnect connector (1).

Release LED module for side trim panel (2) from holder.

Fig 1: Side Trim Panel And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

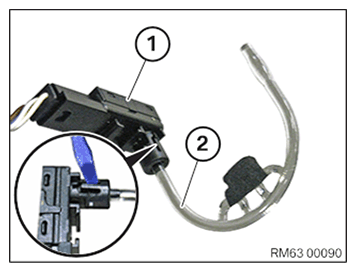

Door opener

Release fibre-optic conductor (2) on latch mechanism by using a screwdriver (3 mm blade).

Pull fibre-optic conductor (2) out of LED module for side trim panel (1).

Fig 2: Fibre-Optic Conductor And Side Trim Panel - Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

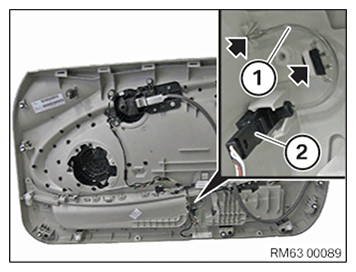

Door pocket:

Unlock and disconnect connector on LED module for side trim panel (2).

Carefully release fibre-optic conductor (1) from holder.

Release LED module for side trim panel (2) from holder.

Fig 3: Fibre-Optic Conductor And Side Trim Panel - Door Pocket

Courtesy of BMW OF NORTH AMERICA, INC.

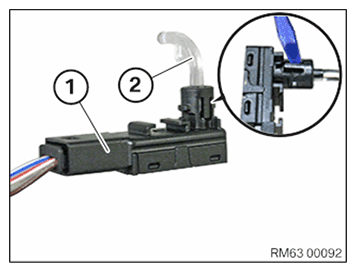

Door pocket:

Release fibre-optic conductor (2) on latch mechanism by using a screwdriver (3 mm blade).

Pull fibre-optic conductor (2) out of LED module for side trim panel (1).

Fig 4: Fibre-Optic Conductor And Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Unlock and disconnect connector on LED module for side trim panel (2).

Release LED module for side trim panel (2) with fibre-optic conductor out of holder.

Fig 5: Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Release fibre-optic conductor (2) on latch mechanism by using a screwdriver (3 mm blade).

Pull fibre-optic conductor (2) out of LED module for side trim panel (1).

Fig 6: Fibre-Optic Conductor And Side Trim Panel - Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Door opener

Join fibre-optic conductor (2) in LED module for side trim panel (1).

Ensure fibre-optic conductor (2) is correctly fitted and engaged in LED module for side trim panel (1).

Fig 7: Fibre-Optic Conductor And Side Trim Panel - Door Opener

Courtesy of BMW OF NORTH AMERICA, INC.

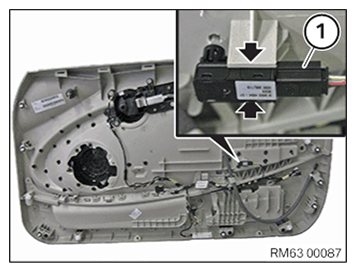

Door opener

Feed in LED module for side trim panel (1) with fibre-optic conductor into holder (2) and door trim panel.

Connect connector to LED module for side trim panel (1).

Fig 8: Side Trim Panel And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Join fibre-optic conductor (2) in LED module for side trim panel (1).

NOTE: Ensure fibre-optic conductor (2) is correctly fitted and engaged in LED module for side trim panel (1).

Fig 9: Fibre-Optic Conductor And Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Door pocket:

Feed in LED module for side trim panel (2) with fibre-optic conductor into holder (1) and door trim panel.

Connect connector to LED module for side trim panel (2).

NOTE: Ensure fibre-optic conductor (1) and LED module for side trim panel (2) are correctly fitted in holder and door trim panel.

Fig 10: Fibre-Optic Conductor And Side Trim Panel - Door Pocket

Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Join fibre-optic conductor (2) in LED module for side trim panel (1).

NOTE: Ensure fibre-optic conductor (2) is correctly fitted and engaged in LED module for side trim panel (1).

Fig 11: Fibre-Optic Conductor And Side Trim Panel - Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Door trim panel

Feed in LED module for side trim panel (1) with fibre-optic conductor into holder.

Connect connector to LED module for side trim panel (1).

NOTE: Ensure fibre-optic conductor and LED module for side trim panel are correctly fitted in holder and door trim panel.

Fig 12: Side Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
