63 25 000 Removing and installing/replacing additional brake light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Follow the SAFETY INSTRUCTIONS for handling bulbs/light sources (exterior lights).

Necessary preliminary tasks:

Remove TRIM FOR REAR WINDOW FRAME AT TOP

Removal:

Release screws on additional brake light (1).

Remove additional brake light (1) from trim for rear window frame (2).

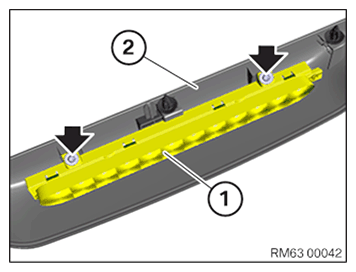

Fig 1: Brake Light And Rear Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Join additional brake light (1) to trim for rear window frame (2).

Tighten screws on additional brake light (1).

Tightening torque: 1.5 Nm.

Fig 2: Brake Light And Rear Window Frame

Courtesy of BMW OF NORTH AMERICA, INC.
