63 11 820 Replacing left/right cornering light LED module

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove HEADLIGHT - LED TECHNOLOGY

Removal:

Release screws.

Pull LED module (1) out of headlight (2).

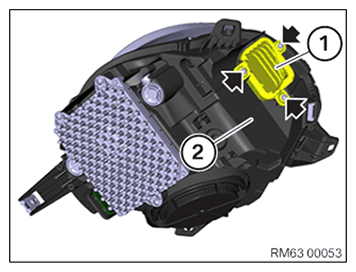

Fig 1: LED Module And Headlight With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector.

Remove LED module (1) from headlight (2).

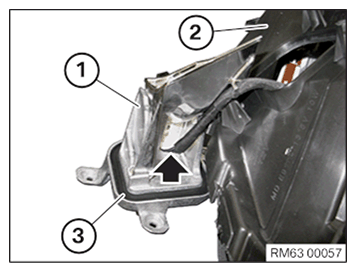

Fig 2: LED Module, Headlight And Gasket With Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector to LED module (1).

NOTE: Ensure correct line routing in headlight (2). Gasket (3) for LED module (1) must not be damaged and must be installed free from grease.

Fig 3: LED Module, Headlight And Gasket With Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Insert LED module (1) in headlight (2).

Tighten down screws.

Tightening torque 63 12 4AZ .

Fig 4: LED Module And Headlight With Screws

Courtesy of BMW OF NORTH AMERICA, INC.
