63 11 760 Replace FLEL control unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove HEADLIGHT - LED TECHNOLOGY

Removal:

Release screws.

Remove front light electronics control unit (1) from headlight (2).

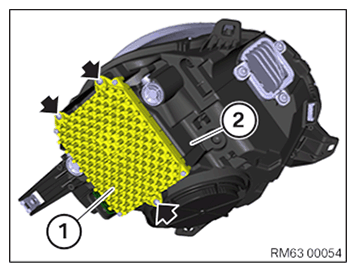

Fig 1: Front Light Electronics Control Unit And Headlight With Screws

G11649977

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Gasket (1) for front light electronics control unit (2) must not be damaged and must be installed free from grease.

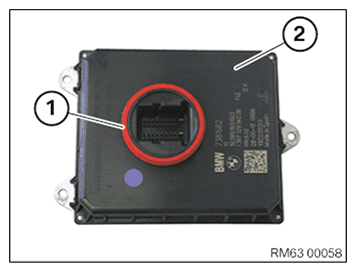

Fig 2: Front Light Electronics Control Unit And Gasket

G11649978

Courtesy of BMW OF NORTH AMERICA, INC.

Insert front light electronics control unit (1) into headlight (2).

Tighten down screws.

Tightening torque 63 12 3AZ .

NOTE: Ensure front light electronics control unit (1) is correctly fitted.

Fig 3: Front Light Electronics Control Unit And Headlight With Screws

G11649977

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install HEADLIGHT - LED TECHNOLOGY

Replacement only:

Carry out PROGRAMMING/ENCODING .
