(Instructions for replacement of air conditioning capacitors and radiator/coolers)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2019 MINI Cooper, 2018 MINI Cooper, 2017 MINI Cooper, 2016 MINI Cooper, and 2015 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:

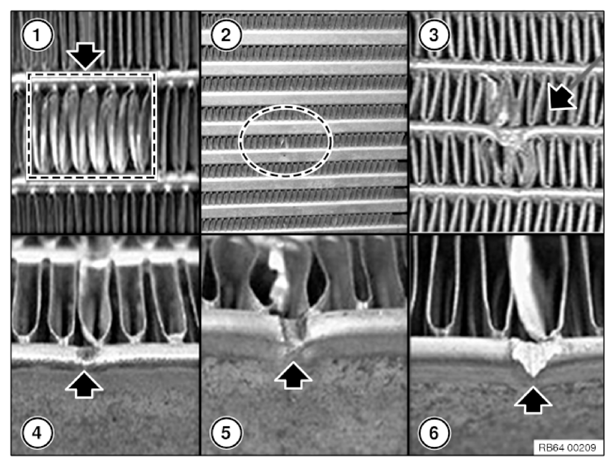

Even when they are correctly installed or due to normal driving, radiators (oil cooler, radiator, charge air cooler) or air conditioning condensers may show slight embossings or deformations on their blades (1).
A slight sag with a large radius for the air conditioning condenser is also permissible.
As long as tightness/function are not degraded and an adequate distance of a few mm between the radiator and air conditioning condenser remains in place, this is not damage in either case.
Radiators or air conditioning condensers are not to be replaced in these cases!
NOTE:
The deformations shown in Fig 1 can be bent back with a standard fin comb.
Damage to lines carrying media or on the flat pipe require exchange of the radiator or air conditioning condenser (2-6).
Dryer flask (integrated in the air conditioning condenser):
Round dents/indentations are permitted.
The air conditioning condenser is not to be replaced in this case.
